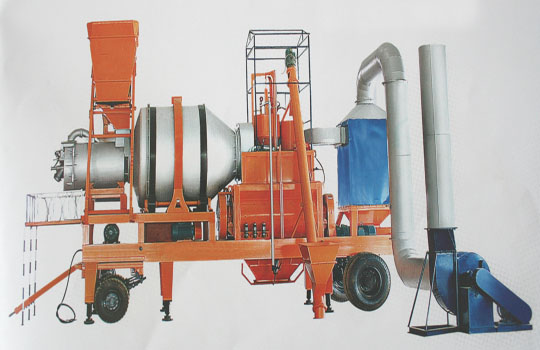

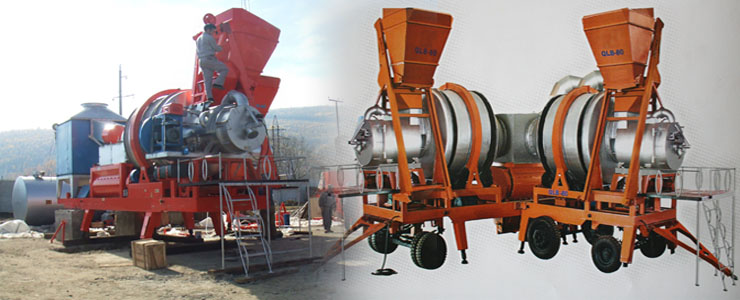

1. Integrated design of drying drum and horizontal twin-shaft mixer, more even mixing and better asphalt.
2. Accurate weighing, and stable quality.
3. Simple structure, easy operation, drying while drum rotate in counter-clockwise direction (from burner), discharging while drum rotates in clockwise direction (from burner), and the wind are swirled in the center of the drum.
4. PLC control, touch screen, auto/manual switchable.
5. Towing chassis for easy transport and installation; Burner is available for coal and oil, at customer's option.
Type |
QLB-10 |
QLB-15 |
QLB-20 |
QLB-30 |
QLB-40 |
QLB-60 |
QLB-80 |
|
Capacity |
10T/h |
15T/h |
20T/h |
30T/h |
40T/h |
60T/h |
80T/h |
|
Power |
Oil |
41.5kW |
54kW |
63.5kW |
104.5kW |
125kW |
157.5kW |
200kW |
Coal |
57.5kW |
75kW |
86.5kW |
127.5kW |
169kW |
205kW |
276kW |
|
Aggregate batcher |
-- |
-- |
2.3M3x3 |
5M3x3 |
5M3x3 |
5M3x3 |
5M3x4 |
|
Storage silo |
2T |
5T |
5T |
9T |
9T |
9T |
20T |
|
Product temperature |
120-180℃, adjustable |
|||||||
Fuel consumption |
OIL:5-7.5KG/T COAL:13-15KG/T |
|||||||
Optional |
Coalmiller, Wet fitter, Bag filter, Controlroom, Bitumen heating tank |
|||||||

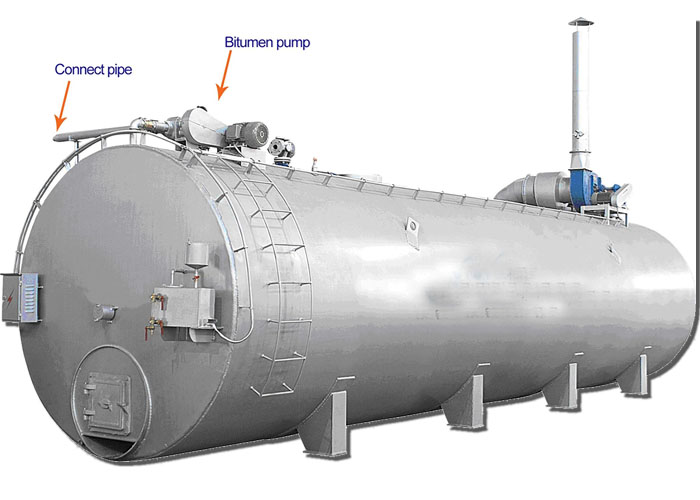

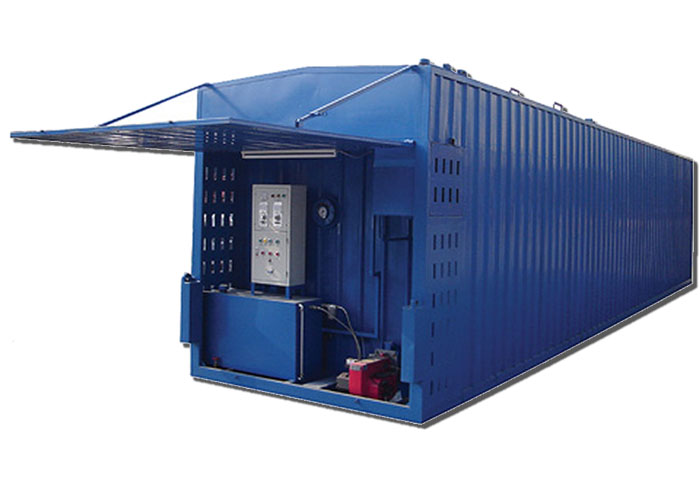

The bitumen tank:
The bitumen tank provides complete functions for bitumen storage, pre-heating, dehydration, heating and delivery. The tank is available for mobile and stationary; it is easy in operation and cost-saving A beeter accessiry for asphalt plants.
Model |
YK-5 |
YK-10 |
YK-30 |
YK-40 |
YK-50 |
RL-5 |
RL-10 |
RL-30 |
RL-40 |
RL-50 |
Volume |
5m3 |
10m3 |
30m3 |
40m3 |
50m3 |
5m3 |
10m3 |
30m3 |
40m3 |
50m3 |
Capacity |
2T/h |
3-4T/h |
5-6T/h |
6-8T/h |
6-9T/h |
2T/h |
3-4T/h |
5-6T/h |
6-8T/h |
6-9T/h |
Power |
3.75kw |
9.8kw |
11.8kw |
11.8kw |
11.8kw |
3.75kw |
9.8kw |
11.8kw |
11.8kw |
11.8kw |
Fuel comsumption |
coal:13-15KG/T |
oil:5-7.5KG/T |
||||||||
Product temperature |
150-180℃ |
|||||||||

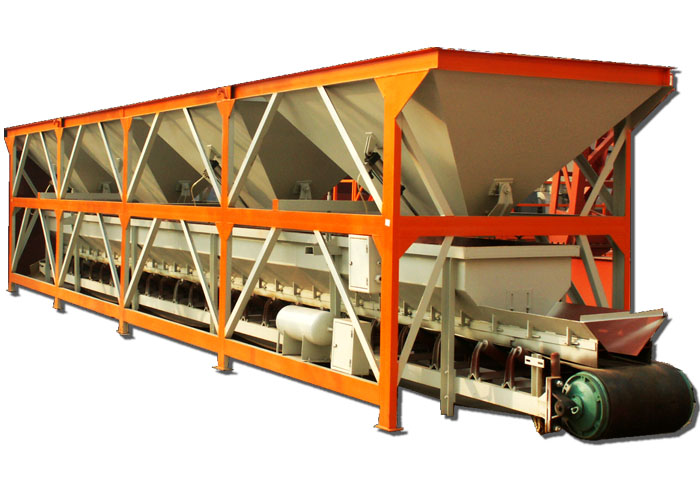

PZ series batcher:
PZ series batcher includes bins, accumulative scale and belt conveyor. The mineral aggergates will be automatically carried on weighing according to given data of the user after the mixing plant being started.
1. Simple structure, mobility available, easy for transport and maintenance.
2. Accumulative weighing, accurate, fall compensation function available.
3. Belt-cleaning device ensure bilt's clean, and prevent material injury belt.
4. Flexible and compatible with various concrete plant.
Model |
PZ30 |
PZ50 |
||
Hopper Capacirty |
2.3m3 |
5m3 |
||
Hopper Quantity |
3 |
4 |
3 |
4 |
Scope Weighing |
8t-20t |
15t-30t |
30t-60t |
30t-80t |
Power |
3kw |
3kw |
5.5kw |
7.5kw |
