LBJ2000 Asphalt Mixing Plant

Home » Products » Asphalt Mixing Plant » LBJ2000 Asphalt Mixing Plant

Send Message

LBJ2000 type asphalt mixing equipment with a total installed power of 519-540 kW. Control system adopts computer control, screen display, keyboard input, and also adopt a number of programmable controller, a high degree of automation.

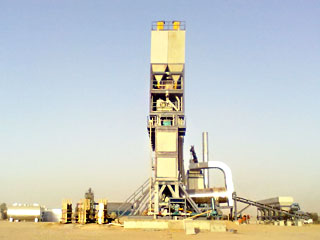

The picture is the LBJ2000 asphalt mixing equipment successfully exported to Kazakhstan in 2012.

A Typical Specification For Taian Kenuo Stationary Asphalt Mixing Plant:

Model		LBJ500	LBJ800	LBJ1000	LBJ1500	LBJ2000	LBJ3000	LBJ4000
Capacity:< 5% moisture		30-40T/h	50-64T/h	60-80T/h	90-120T/h	120-160T/h	180-240T/h	280-320T/h
Cold feed bins	Volume	3x6 m³	4x6 m³	4x6.5 m³	4x6.5 m³	4x8 m³	5x15 m³	6x15 m³
Cold feed bins	Output capacity	50T/h	65T/h	80T/h	120T/h	200T/h	>300T/h	>350T/h
Belt conveyor		Width: 600mm	Width: 650mm	Width: 650mm	Width: 650mm	Width: 650mm	Width: 800mm	Width: 800mm
Belt convey capacity		60T/h	100T/h	100T/h	160T/h	200T/h	>300T/h	>350T/h
Dryer drum		￠ 1225x5850 mm	￠ 1450x6300 mm	￠ 1540x6650 mm	￠ 1950x7730 mm	￠ 2300x8200 mm	￠ 2750x10188 mm	￠ 3000x12000 mm
Drying capacity:﹤5% moisture		40T/h	70T/h	100T/h	120T/h	160T/h	280T/h	360T/h
Burner		Oil burner(China top brand or Foreign brand upon requirement)
Dust filter system		Water type (recommended)	Water type or baghouse type upon requirement
Bag filter system			450 m²	400 m²	500 m²	620 m²	1020 m²	1420 m²
Exhaust fan		25360 m³/h x2550Pa	(19640 -31420 m³/h) x(2760-3220Pa)	(19640 -36140 m³/h) x(2187-3197Pa)	(40940 -75330 m³/h) x(2636-3851Pa)	(47090 -86646 m³/h) x(2867-4185Pa)	74000-95000 m³/h	147000 m³/h
Dust emission		≤400mg/N m³(water type);≤100mg/N m³(bagehouse type)
Hot elevator capacity		60T/h	80T/h	>100T/h	140T/h	180T/h	>320T/h	>340T/h
Vibrate creen		3 grades	4 grades	4 grades	4 grades	4 grades	5 grades	6 grades
Vibrate screen capacity		50T/h	80T/h	100T/h	140T/h	200T/h	>300T/h	>320T/h
Hot bin		3 compartments	4 compartments	4 compartments	4 compartments	4 compartments	5 compartments	6 compartments
Hot bin volume		8 m³	8 m³	10 m³	22 m³	36.7 m³	80 m³	100 m³
Weigh tolerance		Aggregate:±0.5% Asphalt:±0.5% Filter: ±0.25%					Aggregate: ±0.5% Asphalt:±0.5% Filter: ±0.20%	Aggregate: ±0.30% Asphalt:±0.20% Filter: ±0.20%
Mixer capacity		500 KG/batch	800 KG/batch	1000 KG/batch	1500 KG/batch	2000 KG/batch	3000 KG/batch	3000 KG/batch
Mixing time		45s
Asphalt tank capacity		30T x 1	25T x 2	25T x 2	25T x 3	30T x 3	30T x 5	30T x 6
Hot mix storage		60T (optional)	60T (optional)	60T (optional)	100T (optional)	120T (optional)	120T (optional)	240T (optional)
Hot oil heater		Direct-fired heater or indirect heater(optional)
Power		143KW -158KW	186KW -233KW	253KW -280KW	433KW -451KW	519KW -540KW	754KW -789KW	1022KW
